Loadcell kiểu lỗ, 300tf, Dacell CWH-T300

Ứng dụng : trong công trình dân dụng, đo tải trọng giá đỡ..
Trọng tải (RC): 300tf
Điện áp ra định mức (RO): 1 mV / V ±0.4%

0 đ

Specifications	Accuracy
Rated capacity(R.C)	500kgf, 1tf, 2tf, 3tf, 5tf, 10tf, 20tf, 50tf, 100tf, 200tf, 300tf
Rated output(R.O)	1mV/V±0.4%
Nonlinearity	1% of R.O.
Hysteresis	1% of R.O.
Repeatability	0.2% of R.O.
Zero balance	±2% of R.O.
Temperature effect, on rated output	0.05% of LOAD/10℃
Temperature effect, on zero balance	0.1% of R.O./10℃
Temperature range, compensated	-10~60℃
Temperature range, safe	-20~80℃
Terminal resistance input	700 ±50Ω
Terminal resistance output	700 ±2Ω
Insulation resistance bridge/case	2000MΩ
Excitation recommended	10V
Safe overload	150% R.C
Cable length	Φ7mm 4core, 3m

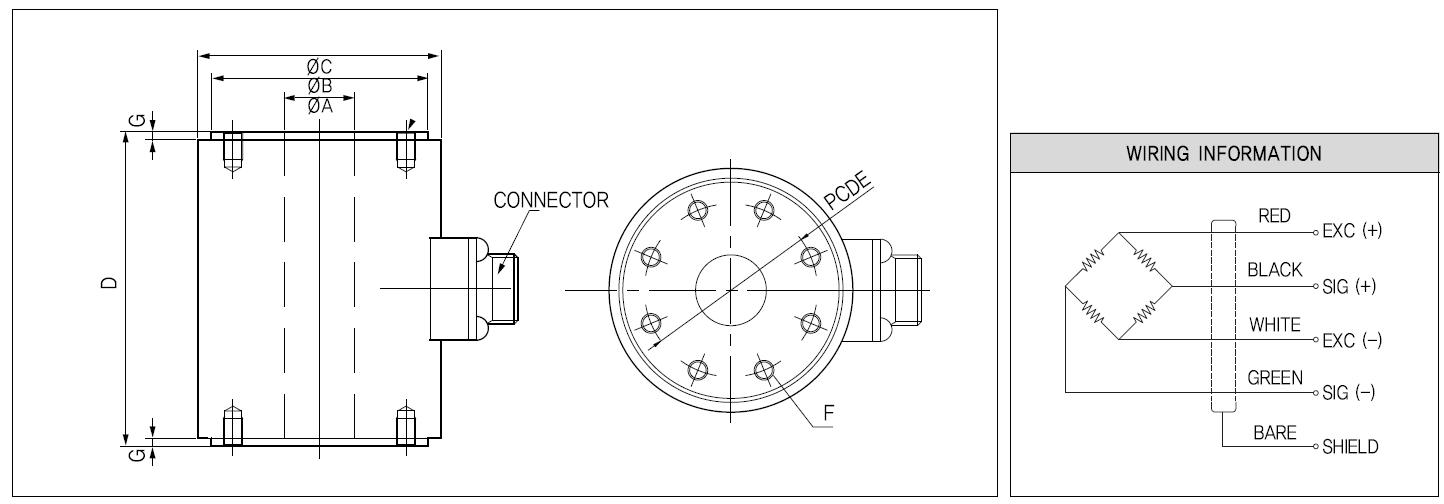

Capacity	ΦA	ΦB	ΦC	D	E	F	G	Weight(kg)
500kgf (4.903KN)	10	24	40	50	18	2x4-M4 DP10	1	0.5
1tf (9.807KN)	18	55	62	70	44	2x8-M5 DP10	2	1
2tf (19.61KN)	18	55	62	70	44	2x8-M5 DP10	2	1
3tf (29.42KN)	18	55	62	70	44	2x8-M5 DP10	2	1
5tf (49.03KN)	18	55	62	70	44	2x8-M5 DP10	2	1
10tf (98.07KN)	18	55	62	80	44	2x8-M5 DP10	2	1.3
20tf (196.1KN)	43	68	96	80	56	2x8-M6 DP10	3	3
50tf (490.3KN)	80	112	130	110	96	2x6-M8 DP10	3	11
100tf (980.7KN)	85	118	158	110	102	2x6-M12 DP10	3	13
200tf (1.961MIN)	120	162	240	120	140	2x6-M12 DP12	3	25
300tf (2.942MIN)	120	179	240	120	150	2x6-M12 DP15	3	26
500tf (4.903MIN)	150	227	265	200	190	2x12-M12 DP15	8	30
